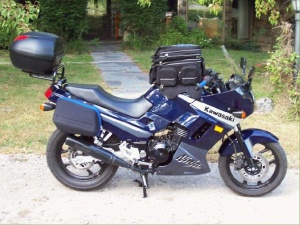

You can acquire a ready-made Ventura or JebRack and install a [http://www.jcwhitney.com/autoparts/Browse/tf-Browse/s-10101/N-111+10211+600014603/c-10111 JC Whitney] or a [http://www.giviusa.com/index.cfm?fuseaction=products&id=126&cat=monokeycases&catid=24&prodid=maxiae50 Givi] trunk. This system is very simple to install and there is no need to make your own parts. Picture taken from [http://www.ninja250.org/Troy Troy's profile]. | You can acquire a ready-made Ventura or JebRack and install a [http://www.jcwhitney.com/autoparts/Browse/tf-Browse/s-10101/N-111+10211+600014603/c-10111 JC Whitney] or a [http://www.giviusa.com/index.cfm?fuseaction=products&id=126&cat=monokeycases&catid=24&prodid=maxiae50 Givi] trunk. This system is very simple to install and there is no need to make your own parts. Picture taken from [http://www.ninja250.org/Troy Troy's profile]. | ||
[[Image:troy_givi01.jpg]] | [[Image:troy_givi01.jpg|300px]] | ||
| Line 15: | Line 15: | ||

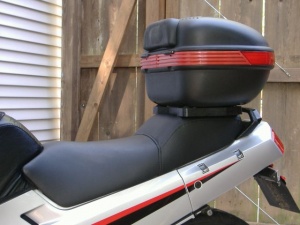

'''Example 2:''' passenger seat self-made hard case [http://www.theyeagergroup.com/Tail_Trunk_Saddle_Project.htm system]. Courtesy of [http://www.ninja250.org/emdsd emdsd]. | '''Example 2:''' passenger seat self-made hard case [http://www.theyeagergroup.com/Tail_Trunk_Saddle_Project.htm system]. Courtesy of [http://www.ninja250.org/emdsd emdsd]. | ||
[[Image:emdsd_givi01.jpg]] | [[Image:emdsd_givi01.jpg|300px]] | ||
| Line 22: | Line 22: | ||
[[Image:quixotic_givi01.jpg]] | [[Image:quixotic_givi01.jpg|300px]] | ||

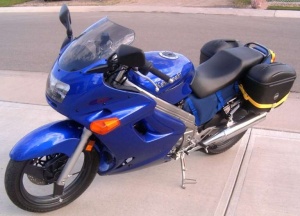

Quixotic manufactured a rectangular sub-frame out of aluminum square stock, and bolted the boxes to it. Detailed instructions can be found [http://www3.telus.net/awareness/saddlebag.htm here]. | Quixotic manufactured a rectangular sub-frame out of aluminum square stock, and bolted the boxes to it. Detailed instructions can be found [http://www3.telus.net/awareness/saddlebag.htm here]. | ||
| Line 32: | Line 32: | ||

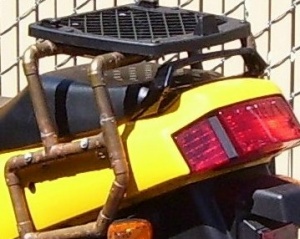

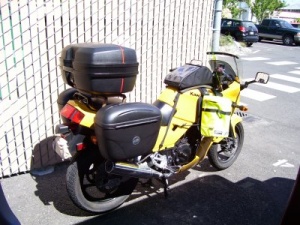

This setup features a DIY rack. Courtesy of viajero (no profile yet) | This setup features a DIY rack. Courtesy of viajero (no profile yet) | ||
[[Image:viajero_givi01.jpg]] | [[Image:viajero_givi01.jpg|300px]] [[Image:viajero_givi02.jpg|300px]] | ||
[[Image:viajero_givi02.jpg]] | |||
Details: 3/4" copper pipe (type L, thick wall) with 3/4" wood dowel running the length of the pipe and as far into the elbows as possible. This should add a lot of strength and crush resistance. Joints are glued with JB Weld. There are two copper rivets in each joint for added strength. All holes have a dab of silicone as well to seal the pipe. Because of the wood inside, it is advisable to waterproof the joints. A particular challenge was drilling the mounting holes to match the angle of the holes for those bungee hooks. Those holes are also filled with silicone at the final mounting. | Details: 3/4" copper pipe (type L, thick wall) with 3/4" wood dowel running the length of the pipe and as far into the elbows as possible. This should add a lot of strength and crush resistance. Joints are glued with JB Weld. There are two copper rivets in each joint for added strength. All holes have a dab of silicone as well to seal the pipe. Because of the wood inside, it is advisable to waterproof the joints. A particular challenge was drilling the mounting holes to match the angle of the holes for those bungee hooks. Those holes are also filled with silicone at the final mounting. | ||
| Line 44: | Line 42: | ||
[[Image:tz_givi01.jpg]] | [[Image:tz_givi01.jpg|300px]] [[Image:tz_givi02.jpg|300px]] | ||
[[Image:tz_givi02.jpg]] | |||

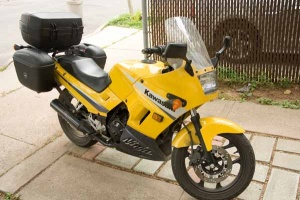

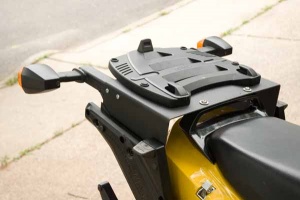

This setup uses passenger footpegs and the grab bar as rack mount points. | This setup uses passenger footpegs and the grab bar as rack mount points. | ||
